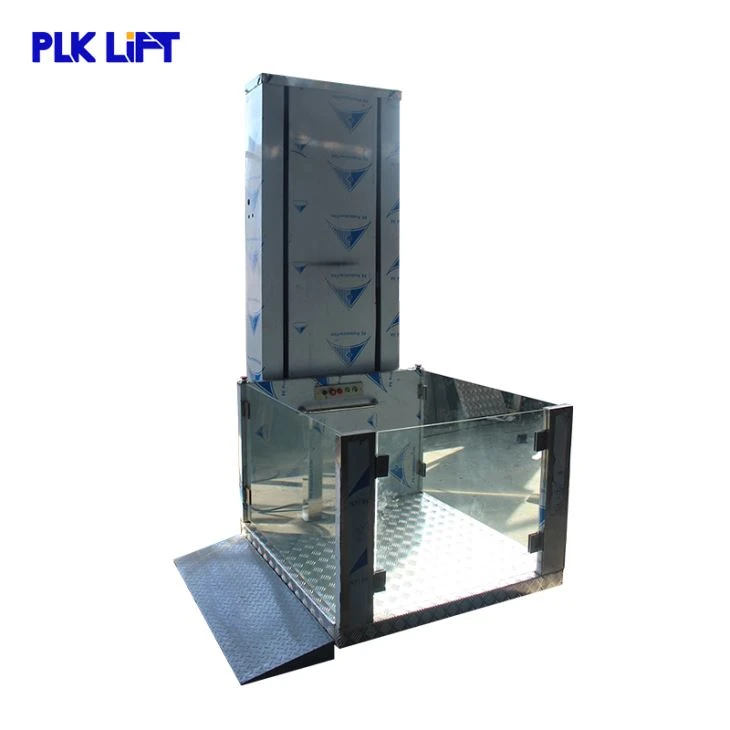

Cathaoir Stair
Is gléasanna innealtóireachta cáilíochta iad ardaitheoirí cathaoireacha rothaí PLK LIFT atá ar fáil le haghaidh suiteálacha uathoibríoch, baile agus tráchtála.
Tá ardaitheoirí cathaoireacha rothaí deartha chun daoine le soghluaisteacht theoranta suas cásanna staighre a iompar in éineacht lena dtrealamh. Tá an t-ardaitheoir saincheaptha don staighre agus ní gá suiteáil ghairmiúil a dhéanamh air. Cuirfimid físeáin ar fáil freisin chun cabhrú leat a shuiteáil.
Clibeanna Te: ardaitheoir staighre, an tSín, soláthraithe, monarcha, praghas
ModelType | WL 2510 | WL 2515 | WL 2520 | WL 2525 | WL 2530 | WL 2535 | WL 2540 | WL 2550 | WL 2560 |
Max.PlatformHeight | 1000 mm | 1500 mm | 2000 mm | 2500 mm | 3000 mm | 3500 mm | 4000 mm | 5000 mm | 6000 mm |
LoadCapacity | 250 kg | 250 kg | 250 kg | 250 kg | 250 kg | 250 kg | 250 kg | 250 kg | 250 kg |
NW / GW (kg) | 350/450 | 450/550 | 550/700 | 700/850 | 780/900 | 850/1000 | 880/1050 | 1000/1200 | 1100/1300 |
MachineSize | 2000*1430*1000 | 2500*1430*1000 | 3000*1430*1000 | 3500*1430*1000 | 4000*1430*1000 | 4600*1430*1000 | 5100*1430*1000 | 6100*1430*1000 | 7100*1430*1000 |
PackingSize (mm) | 2200*1600*1600 | 2600*1600*1600 | 2800*1600*1600 | 3100*1600*1600 | 3300*1600*1600 | 3600*1600*1600 | 3800*1600*1600 | 4300*1600*1600 | 4800*1600*1600 |
Ardán | 1430 * 1000 mmskidproofcheckeredsteel | ||||||||
MinPlatformheight | 60 mm | ||||||||
Luas | 0.06~0.1m/s | ||||||||
Controlvoltage | 24 V / DC | ||||||||
PowerOutput | 1. 1 ~ {{2}}. {{2}} KW | ||||||||
Voltas | AsperyourlocalStandard (singlephaseorthreephase) | ||||||||
DriveSystem | Hiodrálachapumpstationandelectricmotor (Seedetailsbelow) | ||||||||
ControlMode | Automatictravelswitch (Seedetailsbelow) | ||||||||
DriveControl | Córas féin-athlonnaithe | ||||||||
Ró-ualach | Overcurrentrelayprotection | ||||||||
Ábhair | Alúmanamrailsandguardwithsprayingplastics. (Seedetailsbelow) | ||||||||
Coinníoll Oibre | Bothindoorsandoutdoors-20 ° ~ 70 ° C. | ||||||||
Iontráil-ScoirWay | Tá sé 90 ° nó 180 ° | ||||||||
Suiteáil | Nopitinstalling, easytoinstallandremove.Installedbothonthefloorandonthewall. | ||||||||
Lasca | 1. Onecontrolpanelontheplatform. 2. Installtwocolumnswitchesonground, whichcanbefixedatanyfloorneeded. 3. Remotecontrol, usercanoperateliftwithin 2 0m. | ||||||||
